The 3DLAB is dedicated to high resolution additive manufacturing of photosensitive resists and characterisation.

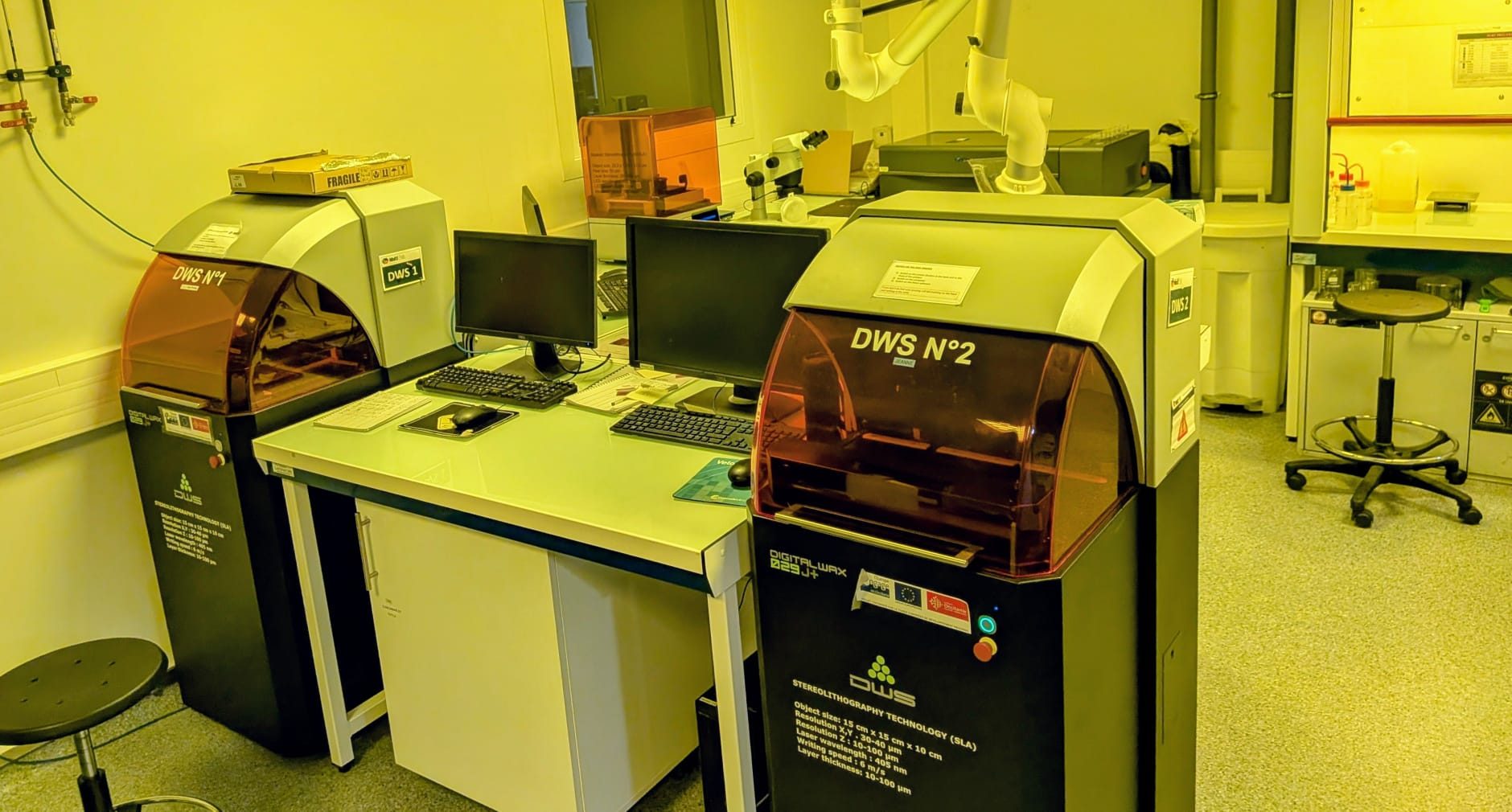

List of facilities in the 3DLAB :
- DWS 029J+ printer (3D System company)
- Form4B printer (FormLabs company)
Facilities | Technical Specifications

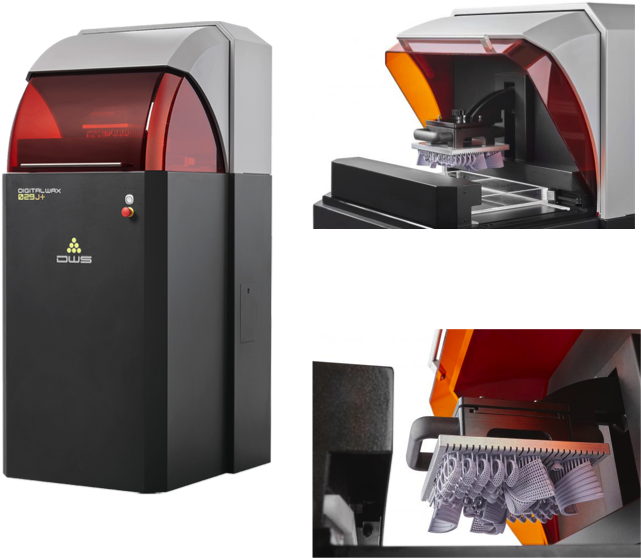

DWS 029J+
- Technology: Stereolithography (SLA)
- Object size: 15 cm x 15 cm x 10 cm
- X,Y resolution: 30-40 µm
- Z resolution: 10-100 µm
- Laser speed: 6 m/s
- Laser wavelength : 405 nm
- Layer thickness: 10-100 µm (depending on the type of material used)

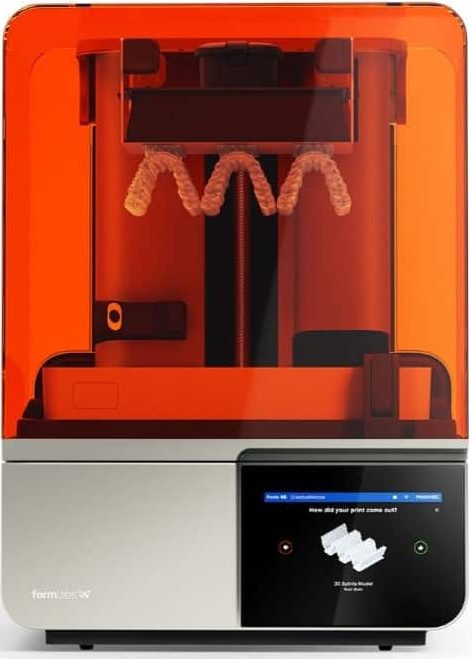

Form 4B
- Technology: Low Force Display (60 LEDs)
- Object size: 20,0 x 12,5 x 21 cm
- Pixel size: 50 µm
- LED wavelenght: 405 nm
- LED power: 16 mW/cm²
- Maximum speed: 100 mm/h
- Layer thickness: 25 – 200 µm (depending of the resin)
